前言:本人在配置Hadoop的过程中,需要搭建Cent OS 64 环境,借此,顺便将Cent OS 64 的安装在此记录,方便自己,也方便大家学习。本次是在VM12虚拟机中实现Cent OS 64 的安装以及配置,后续还会有Hadoop的安装配置教程,我们先来进行第一步。

一、VMware 12 Install CentOS 64(linux)OS

create a new vm->there I screenshot my settings in the next steps->

VMware 12中CentOS 6.5 64位安装配置教程
VMware 12中CentOS 6.5 64位安装配置教程

keep next step->

VMware 12中CentOS 6.5 64位安装配置教程
VMware 12中CentOS 6.5 64位安装配置教程

the os name at will,if you understand it->the position choose a folder that you like->next->

VMware 12中CentOS 6.5 64位安装配置教程

next as deault,my computer`s RAM is 8G so i choose 1G that default>next

the net mode choose NAT,then we set IP address to connect the internet->

VMware 12中CentOS 6.5 64位安装配置教程

steps the default->

there I remove the audio card and the printer that impossible use them->accomplish!

VMware 12中CentOS 6.5 64位安装配置教程

the the vm will apper in the left list->

VMware 12中CentOS 6.5 64位安装配置教程

click the centOS 64 hadoop-master,we set the os install cd/DVD Path->

in the position we set the install cd/DVD ,choose the install source that we have upload CentOS64(CentOS6.5)

you can get the centos in the internet->

VMware 12中CentOS 6.5 64位安装配置教程

then we power start the vm cent os 64->

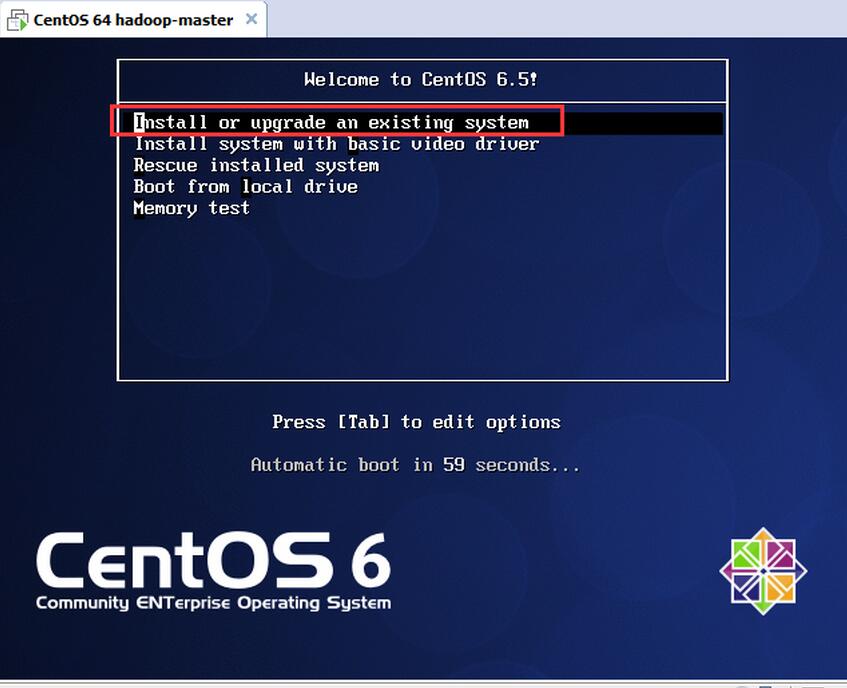

choose the first option install or upgrade an existing system->

VMware 12中CentOS 6.5 64位安装配置教程

OK

VMware 12中CentOS 6.5 64位安装配置教程

default ok that can show the step of check disks->

VMware 12中CentOS 6.5 64位安装配置教程

if check complete choose OK->

VMware 12中CentOS 6.5 64位安装配置教程

OK->Continue

VMware 12中CentOS 6.5 64位安装配置教程

if have a problem below we can learn from internet that we should reboot the vm , then choose skip->

VMware 12中CentOS 6.5 64位安装配置教程

next we reboot the system->

wait a minute show a confirm we choose skip;then it`s can found the install resource,auto install !->

VMware 12中CentOS 6.5 64位安装配置教程

into the view settings->

VMware 12中CentOS 6.5 64位安装配置教程

Choose language, there we choose English(English)->next

VMware 12中CentOS 6.5 64位安装配置教程
VMware 12中CentOS 6.5 64位安装配置教程
VMware 12中CentOS 6.5 64位安装配置教程

choose much next step we get there->

we choose Yes,discard any data->next->

VMware 12中CentOS 6.5 64位安装配置教程

input HostName,i set the master as HostName->next->

VMware 12中CentOS 6.5 64位安装配置教程

next->

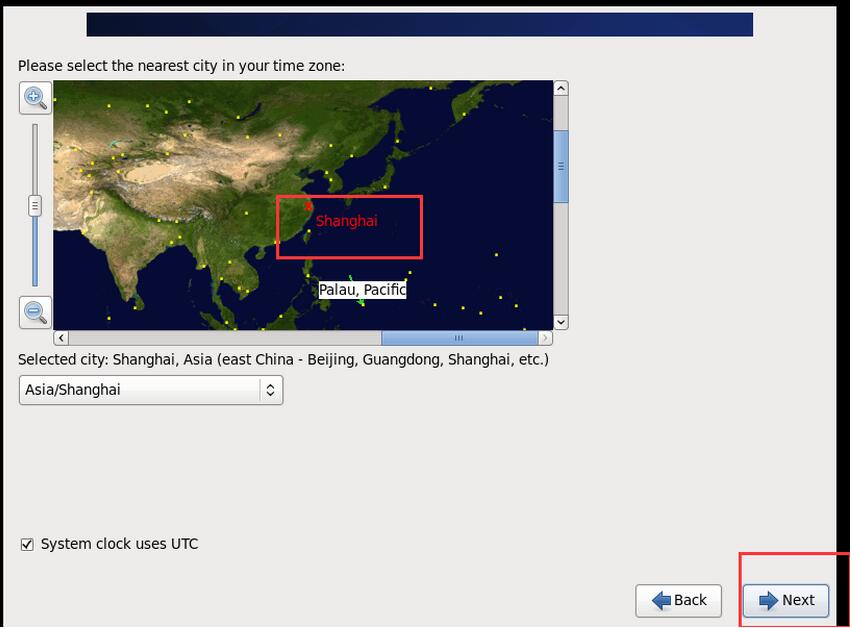

The position we choose ShangHai->next

VMware 12中CentOS 6.5 64位安装配置教程

there we must confirm the window that tell us input the password and confirm(Don`t forget that pwd)->next->

there we choose Replace Existing Linux System->next

VMware 12中CentOS 6.5 64位安装配置教程

then choose Write Changes to disk->

VMware 12中CentOS 6.5 64位安装配置教程

next->

VMware 12中CentOS 6.5 64位安装配置教程

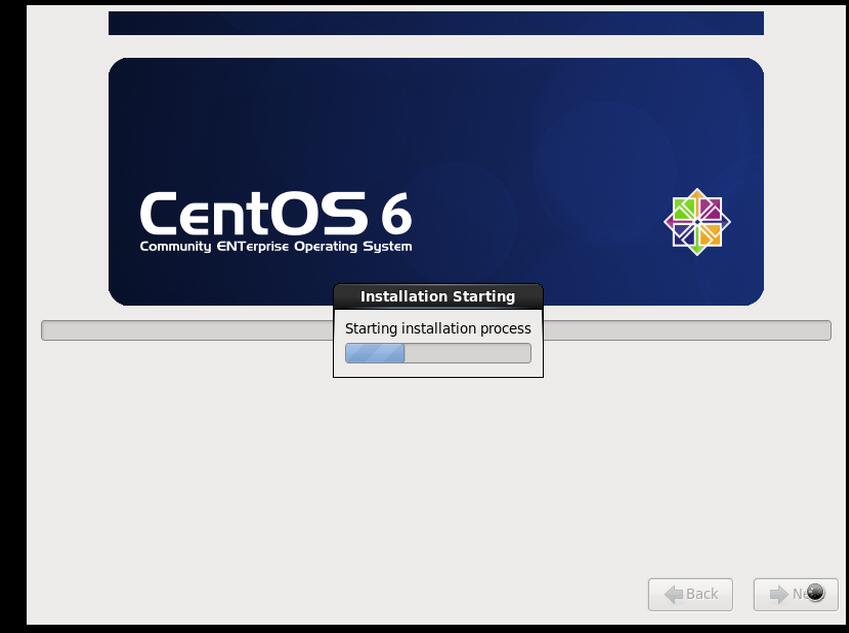

The System will progress the install progress->

OK->we Reboot the system

VMware 12中CentOS 6.5 64位安装配置教程

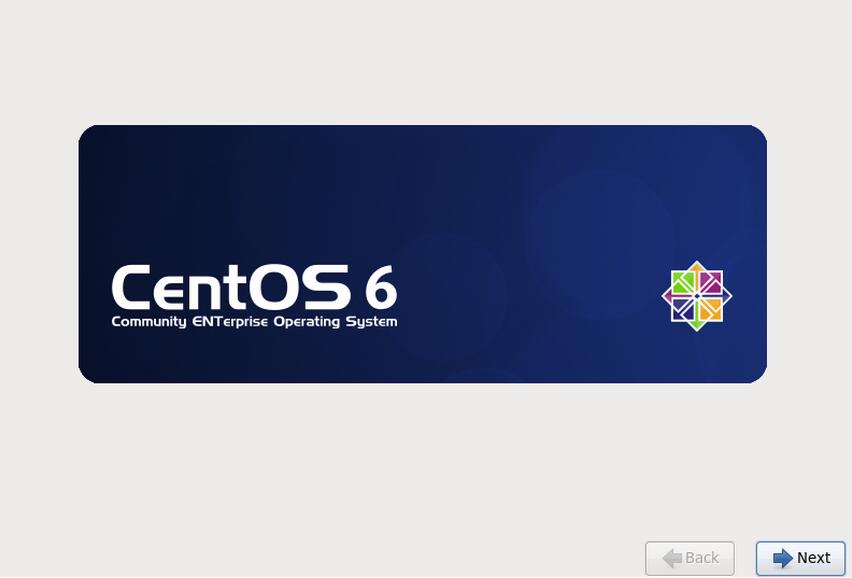

oh welcom view->forward

VMware 12中CentOS 6.5 64位安装配置教程

Yes,I agree to the license Agreement(you known)->

then input your Username and password as will you like and dont`t forget them->

VMware 12中CentOS 6.5 64位安装配置教程

forward

VMware 12中CentOS 6.5 64位安装配置教程

if you get error in the Kdump step neglect it and click finish->

VMware 12中CentOS 6.5 64位安装配置教程

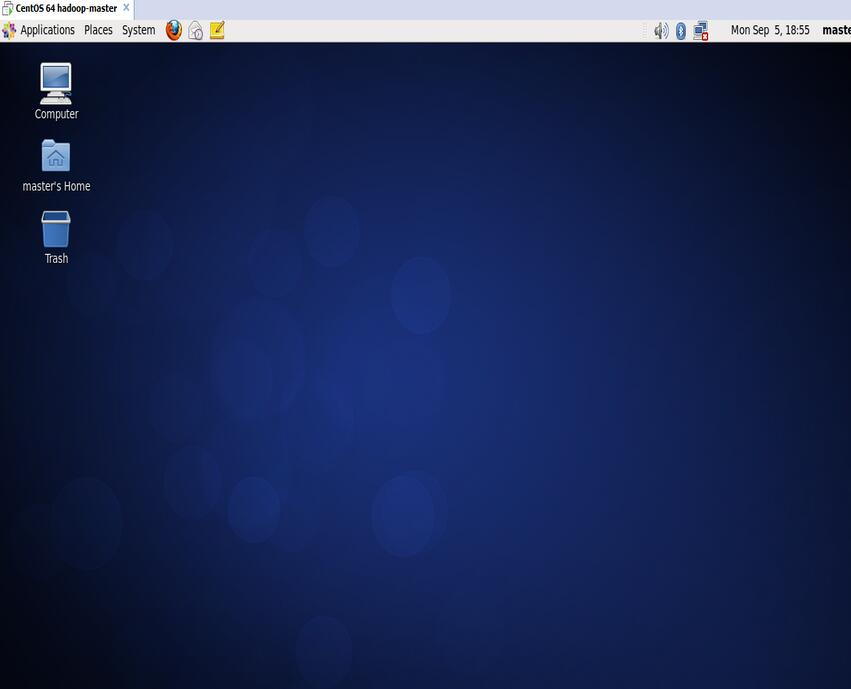

Then Reboot -> wait a minute we can input the password into the system CentOS->

VMware 12中CentOS 6.5 64位安装配置教程

OK The CentOS64`s Install is complete ! Congratulation To you !

Then we set the net to the VM ->

choose the vpn connections -> Configure VPN->

VMware 12中CentOS 6.5 64位安装配置教程

Add->

VMware 12中CentOS 6.5 64位安装配置教程

Create->

VMware 12中CentOS 6.5 64位安装配置教程

RName the connection name we named master ->

VMware 12中CentOS 6.5 64位安装配置教程

let find the settings options there->

VMware 12中CentOS 6.5 64位安装配置教程

Then choose VMnet8->'NAT设置'->

VMware 12中CentOS 6.5 64位安装配置教程
VMware 12中CentOS 6.5 64位安装配置教程

We can get the Net GateWay and NetMask etc...

then we set the net work->

VMware 12中CentOS 6.5 64位安装配置教程

The Address input as will but cant repeat with other !

if we don`t known the DNS servers we input the chorm`s DNS 8.8.8.8;

then we into the vm->set the IPv4 Settings:

Method:Manual(static address);

Address:192.168.239.128;

NetMask:255.255.255.0;

GateWay:192.168.239.2;

DNS server:8.8.8.8

Apply ->

You should start your VMware NAT Service if you want VM to connection the internet via conputer !

VMware 12中CentOS 6.5 64位安装配置教程

Then we find the network ico is have not the error ico ;

VMware 12中CentOS 6.5 64位安装配置教程

We can ping the host 192.168.239.1

VMware 12中CentOS 6.5 64位安装配置教程

you can see it`s successful !

let we test->start the Firfox explorer->input the url www.baidu.com->enter->

VMware 12中CentOS 6.5 64位安装配置教程

That you can see the vm CentOS can surf the internet !

Then let we configurate the Hadoop install and configuration !
